CMT Eclipse Model LE48 is a large floor-style spacious industrial laser marking machine.

LE48 Large Bed

The large bed model LE48 laser solution is designed with key features for safely laser marking large parts, a wide range of parts or part pallets. This model has an amazing work area of 23" x 45" x 12.5" (height is dependent on the laser source). The model comes complete with floor-style base for stability.

Complete marking system:

  • Selection OG laser marking head mounted outside of light tight enclosure
  • Light tight enclosure
  • Large viewable safety glass window
  • Laser status light
  • Variable height adjustment
  • Inside work light
  • Floor style machine base
  • Auxiliary fume extractor port
  • Ergonomic access slide door with integrated safety lock

The CMT Eclipse LE48 Large Bed Model for spacious production laser marking of industrial parts. Check out included features and essential components to make a complete turnkey station.

Large Bed Enclosure

CMT Eclipse Model LE48 light tight laser marking enclosure features a large bed with dual sliding doors to grant a large opening for easily loading and unloading parts.

Key Points:

  • LE48 Dimensions 26" x 48" x 72" (includes machine base)
  • Large enclosure for manual marking operation
  • USA FDA CDRH certificate fo safety
  • Fume extraction port

Top 3 applications of Model LE48 Large Bed Laser Marking machine:

  1. Large parts
  2. Pallets - increased throughput
  3. Multi-axis flexibility

Laser Source

CMT has a range of lasers sources to meet any application requirement. From CO2 laser for plastic marking to high wattage fiber lasers with 3D profiling capabilities.

  • Low production or high production
  • 1 watt up to 50 watt power
  • CO2, fiber
  • Standard or profiling
  • 3rd-axis controls to mark on the outside of round parts

Work Area

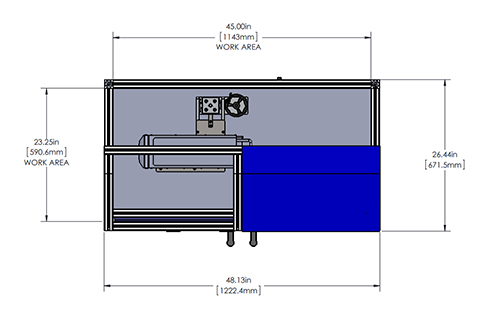

In the spacious large bed LE48 laser marking machine, the laser head can move around to be positioned at many different locations. The work area is 45" x 25" x 12.5" (height depends on the laser source). The head can mark a pallet load of parts in one seamless marking pass or be flexible to mark a wide range of parts. Manually positioning laser head is a standard feature. Powered or automated axis can be included upon request.


Fixture Plate

The CMT Eclipse LE48 fixture plate is a standard aluminum T-slot table. The table uses standard 8020 T-nuts to mount fixtures. Standard fixture plate can be replaced with a breadboard or other custom design upon request.


Floor-style Base

The LE48 large bed laser marking machine comes complete with a floor base for stability. The base has room to mount the laser controller and HMI PC. The base comes standard with leveling feet. Castor upgrades are available for station mobility.

  • Floor space required: 26" x 48" doors closed and 26" x 96" with doors open
  • Solid steel tooling plate
  • Control storage space

Laser Software

All laser sources come with Windows software. Features include:

  • Automated date coding and serial numbering
  • Placeholders for external data input via MES systems
  • Input for logos and other artwork
  • Varying power for different elements in the same marking legend
  • Additional marking passes to maximize depth of mark

All the needed elements to have a complete turnkey marking station.

  • I-Mark M and MS Series - included
  • I-Mark C Series
  • CMT Eclipse LE16 Compact
  • CMT Eclipse LE24 Round
  • CMT Eclipse LE48 Large Bed
  • CMT Eclipse LER Rotary Turn Table
  • CMT Eclipse Tunnel Automated Conveyor

A great addition to the I-Mark dot-peen and scribe marking machines or the CMT Eclipse laser marking machines is the CMT industrial PC. The Windows-based PC is a fanless computer with no moving parts. The complete upgrade includes: Windows software, preloaded laser software, 17" monitor and mount, membrane keyboard and shelf.

  • CMT Eclipse LE16 Compact
  • CMT Eclipse LE16HD Robot Station
  • CMT Eclipse LE24 Round
  • CMT Eclipse LE48 Large Bed
  • CMT Eclipse LER Rotary Turn Table
  • CMT Eclipse Tunnel Automated Conveyor

CMT offers an industrial fume extractor for laser marking. Laser marking is a burning process, and the smoke contains particulate matter that is not healthy for the operator to breathe. The smoke and particulate also impedes the laser beam and reduces the clarity and depth of the mark. A powerful fume extractor system is recommended to assure safety of the operator and the clarity of the mark.

The CMT Fume Extractor is contained in a brushed stainless steel floor-style cabinet with casters. The 3-stage filter system is pre-piped and wired to the laser enclosure system. The complete package includes hoses and suction nozzle mounting. CMT recommends this essential component to provide longevity to the laser unit investment.

The large bed of the CMT Eclipse LE48 makes the use of additional axis for easy part marking very efficient. Options include:

  • Powered Z-axis for quick placement of marking head prior to marking.
  • Automated Z-axis for multi-level marking in one operation.
  • X-Y table to maximize production throughput
  • Rotator to mark on the OD round parts
  • I-Mark M and MS Series - auto start
  • I-Mark C Series - auto Start
  • CMT Eclipse LE16 Compact auto door/start
  • CMT Eclipse LE16HD Robot Station - auto door/start included
  • CMT Eclipse LE24 Round - auto door/start
  • CMT Eclipse LE48 Large Bed - auto door/start
  • CMT Eclipse LER Rotary Turn Table - auto door/start included
  • CMT Eclipse Tunnel Automated Conveyor - auto door/start included

Automated start features are simply a must for production manufacturing. The standard method to start the marking process for either the I-Mark or CMT Eclipse marking software is to use a Windows mouse and select the marking icon, followed by an additional mouse click to start the process. This process is only seconds, but for repetitive production marking it adds up to minutes.

CMT can provide a custom-designed master fixture plate with adjustable design and positive part stop for exact positioning every time. The application specific solution will be precision designed and built. CMT custom fixtures feature easy clamping or backup system to provide repeatable positioning. Please provide part prints with marking location noted at the time of quotation request.
