CMT Eclipse Model LER is a turn-table floor-style rotary industrial laser marking machine.

LER Rotary

The rotary turn-table model LER laser solution is designed with key features for safely laser marking for high-volume production. In this unique system, marking can be combined with other production processes to provide lean manufacturing savings.

Complete marking system:

  • Selection of laser marking heads
  • Light-tight enclosure uses section dividers as part of the enclosure
  • Large viewable safety glass window
  • Laser status light
  • Variable height adjustment
  • Floor style machine base

The CMT Eclipse LER Rotary Turn-Table Model for Extreme High Volume production laser marking of industrial parts. Check out included features and essential components to make a complete turnkey station.

Rotary Turn-Table Enclosure

CMT Eclipse Model LE48R light-tight laser marking enclosure features rotary turn-table with sectional dividers.

Key Points:

  • Manual or automated operations
  • Multi-stations with the flexibility to be used for more than marking
  • USA FDA CDRH certificate of safety
  • Fume extraction port

Three different sized models:

  • LER40 Large dimensions 38" x 62" x 72" (includes machine base)
  • LER30 Medium size
  • LER20 Small size

Laser Source

CMT has a range of laser sources to meet any application requirement, from CO2 laser for plastic marking to high wattage fiber lasers with 3D profiling capabilities.

  • Low production or high production
  • 1 watt up to 50 watt power
  • CO2, fiber
  • Standard or profiling
  • 3rd-axis controls to mark on the outside of round parts

mp4 video converter by EasyHtml5Video.com v4.0

Work Area

The CMT Eclipse model LER rotary turn-table laser marking system comes in three sizes.

  • LER40 Large 40" turn-table - designed for marking/work area 15" x 15"
  • LER30 Medium 30" turn-table - designed for marking/work area 10" x 10"
  • LER20 Small 20" turn-table - designed for marking/work area 6" x 6"

Master Fixture Plate

The CMT Eclipse LER has a turn-table plate that is mounted with a quick release. The design of the quick release is based on the pallet design.


Floor style Base

The LER rotary turn-table laser marking machine comes complete with a floor base for stability. The base has room to mount the laser controller and HMI PC. The solid steel construction is designed for high-production environment, stability and durability.

  • Floor space required: 40" x 61" and 40" x 96" - access door open
  • Solid steel tooling plate
  • Fork lift points

Laser Software

All laser sources come with Windows software. Features include:

  • Automated date coding, and serial numbering
  • Placeholders for external data input via MES systems
  • Input for logos and other artwork
  • Varying power for different elements in the same marking legend
  • Additional marking passes to maximize depth of mark

All the needed elements to have a complete turnkey marking station.

  • I-Mark M and MS Series - included
  • I-Mark C Series
  • CMT Eclipse LE16 Compact
  • CMT Eclipse LE24 Round
  • CMT Eclipse LE48 Large Bed
  • CMT Eclipse LER Rotary Turn Table
  • CMT Eclipse Tunnel Automated Conveyor

A great addition to the I-Mark dot-peen and scribe marking machines or the CMT Eclipse laser marking machines is the CMT industrial PC. The Windows-based PC is a fanless computer with no moving parts. The complete upgrade includes: Windows software, preloaded laser software, 17" monitor and mount, membrane keyboard and shelf.

  • CMT Eclipse LE16 Compact
  • CMT Eclipse LE16HD Robot Station
  • CMT Eclipse LE24 Round
  • CMT Eclipse LE48 Large Bed
  • CMT Eclipse LER Rotary Turn Table
  • CMT Eclipse Tunnel Automated Conveyor

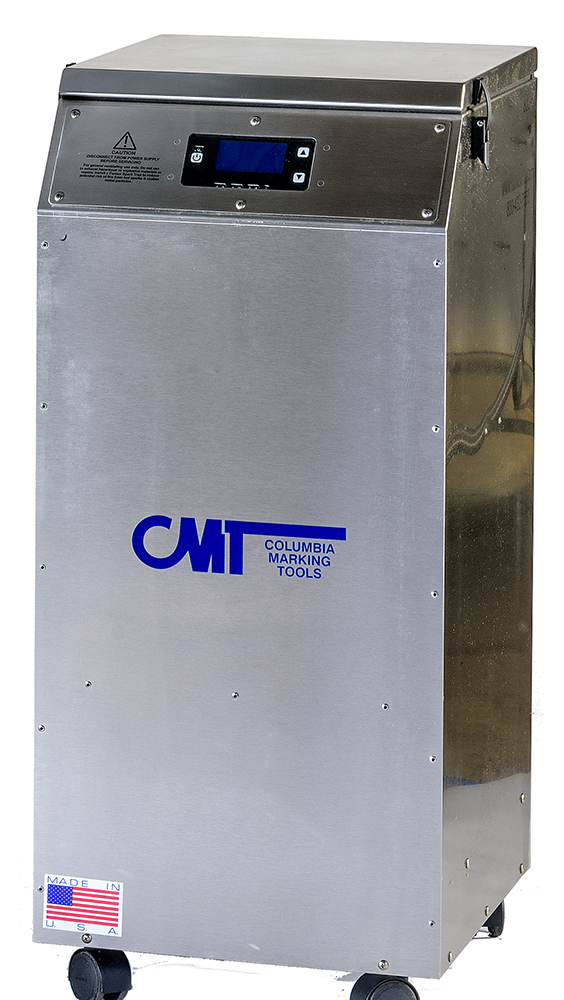

CMT offers an industrial fume extractor for laser marking. Laser marking is a burning process, and the smoke contains particulate matter that is not healthy for the operator to breathe. The smoke and particulate also impedes the laser beam and reduces the clarity and depth of the mark. A powerful fume extractor system is recommended to assure safety of the operator and the clarity of the mark.

The CMT Fume Extractor is contained in a brushed stainless steel floor-style cabinet with casters. The 3-stage filter system is pre-piped and wired to the laser enclosure system. The complete package includes hoses and suction nozzle mounting. CMT recommends this essential component to provide longevity to the laser unit investment.

CMT can provide a custom-designed master fixture plate with adjustable design and positive part stop for exact positioning every time. The application-specific solution will be precision designed and built. CMT custom fixtures feature easy clamping or backup system to provide repeatable positioning. Please provide part prints with marking location noted at the time of quotation request.
