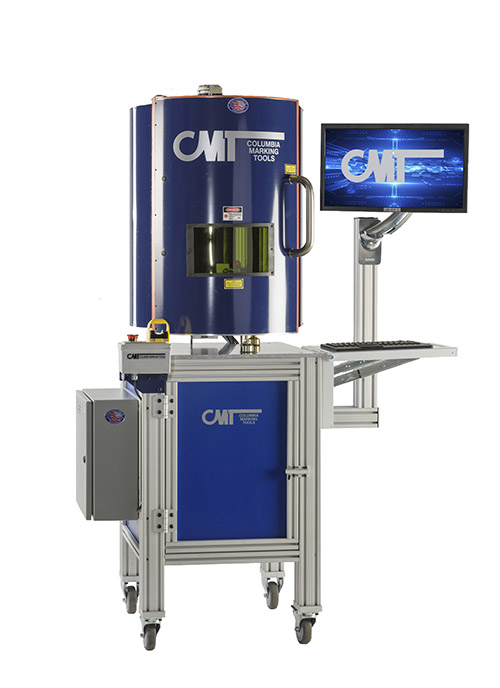

CMT Eclipse Model LE24 is a versatile safe ergonomic industrial laser marking machine.

LE24 Round

The versatile advanced model LE24 laser solution is designed with key features for safely laser marking a wide range of parts.

Complete marking system:

  • Selection OF laser marking head mounted outside of light tight enclosure
  • Light tight enclosure
  • Large viewable safety glass window
  • Laser status light
  • Variable height adjustment
  • High-quality linear rail and lock maintains crisp marking and reduces shop environment vibrations
  • Shock absorbing leveling feet
  • Auxiliary fume extractor manifold
  • Modular T-slot work table
  • Ergonomic "elbow" room for loading and unloading of parts
  • Rugged smooth radial door movement, self storing
  • Light breaking door edge overlap

The CMT Eclipse LE24 versatile model for flexible production laser marking of industrial parts. Check out included features and essential components to make a complete turnkey station.

Ergonomic Enclosure

CMT Eclipse Model LE24 light tight laser marking enclosure features a unique round shape to provide a large opening to easily load and unload parts.

Key Points:

  • LE24 dimensions 24" diameter (approx.) x 36" height
  • LE24 CAD file for placement in production
  • Midsize enclosure for manual marking operation
  • USA FDA CDRH certificate fo safety
  • Fume extraction port
  • Medium parts under 17" (door opening) x 12" x 10" in height (varies based on laser source). For larger parts see the LE48 Large Bed Enclosure

Laser Source

CMT has a range of laser sources to meet any application requirement. From CO2 laser for plastic marking to high wattage fiber lasers with 3D profiling capabilities.

  • Low production or high production
  • 1 watt up to 50 watt power
  • CO2, fiber
  • Standard or profiling
  • 3rd axis controls to mark on the outside of round parts

Work Area

The ergonomic self-storing door of the LE24 enclosure provides a wide opening for loading and unloading parts. The maximum width is 17.3". The part can have a marking height (with fixture) of 10", depending on the laser source.

Fixture Plate

The CMT Eclipse LE24 fixture plate is a standard aluminum T-slot table 9" x 12". The table uses standard 8020 T-nuts to mount fixtures. This can be replaced with a breadboard or other master fixture plate design upon request.

Laser Software

All laser sources come with Windows software. Features include:

  • Automated date coding, and serial numbering
  • Placeholders for external data input via MES systems
  • Input for logos and other artwork
  • Varying power for different elements in the same marking legend
  • Additional marking passes to maximize depth of mark

All of the needed elements to have a complete turnkey marking station.

  • I-Mark M and MS Series - included
  • I-Mark C Series
  • CMT Eclipse LE16 Compact
  • CMT Eclipse LE24 Round
  • CMT Eclipse LE48 Large Bed
  • CMT Eclipse LER Rotary Turn Table
  • CMT Eclipse Tunnel Automated Conveyor

A great addition to the I-Mark dot-peen and scribe marking machines or the CMT Eclipse laser marking machines is the CMT industrial PC. The Windows-based PC is a fanless computer with no moving parts. The complete upgrade includes: Windows software, preloaded laser software, 17" monitor and mount, membrane keyboard and shelf.

  • CMT Eclipse LE16 Compact
  • CMT Eclipse LE16HD Robot Station
  • CMT Eclipse LE24 Round
  • CMT Eclipse LE48 Large Bed
  • CMT Eclipse LER Rotary Turn Table
  • CMT Eclipse Tunnel Automated Conveyor

CMT offers an industrial fume extractor for laser marking. Laser marking is a burning process, and the smoke contains particulate matter that is not healthy for the operator to breathe. The smoke and particulate also impedes the laser beam and reduces the clarity and depth of the mark. A powerful fume extractor system is recommended to assure safety of the operator and the clarity of the mark.

The CMT Fume Extractor is contained in a brushed stainless steel floor-style cabinet with casters. The 3-stage filter system is pre-piped and wired to the laser enclosure system. The complete package includes hoses and suction nozzle mounting. CMT recommends this essential component to provide longevity to the laser unit investment.

The industrial machine base takes the LE24 from a benchtop station to a complete floor-style machine. The base has room to mount the laser controller and HMI PC. The base comes standard with leveling feet. Castor upgrades are available for station mobility.

  • I-Mark M and MS Series - auto start
  • I-Mark C Series - auto Start
  • CMT Eclipse LE16 Compact auto door/start
  • CMT Eclipse LE16HD Robot Station - auto door/start included
  • CMT Eclipse LE24 Round - auto door/start
  • CMT Eclipse LE48 Large Bed - auto door/start
  • CMT Eclipse LER Rotary Turn Table - auto door/start included
  • CMT Eclipse Tunnel Automated Conveyor - auto door/start included

Automated start features are simply a must for production manufacturing. The standard method to start the marking process for either the I-Mark or CMT Eclipse marking software is to use a Windows mouse and select the marking icon, followed by an additional mouse click to start the process. This process is only seconds, but for repetitive production marking it adds up to minutes.

CMT can provide a custom-designed master fixture plate with adjustable design and positive part stop for exact positioning every time. The application-specific solution will be precision designed and built. CMT custom fixtures feature easy clamping or backup system to provide repeatable positioning. Please provide part prints with marking location noted at the time of quotation request.
